Specifications:
LED Pixel dot light source using imported CREE or Osram led chips, built-in microcomputer chip, arbitrary programming control, multiple synchronous changes, monochrome changes can also be achieved synchronous colorful gradient jump.
Elegant appearance, easy to control, Installation, Maintenance more convenient.

The new generation DMX512 Pixel Dot Light parallel general circuit technical design, a single dot light for an independent pixel , each pixel can achieve 256 gray changes, bad on does not affect the next one, before and after the signal has no effect.

Protection level IP66 to IP68, Dot light between the adoption of body no join design, anti drag design, easy installation and maintenance.

High safety performance, flame retardant grade V-0, Can be achieved from the fire extinguisher.

Our dot light, strong weather ability, anti-ultraviolet, resistance to hot and cold deformation, anti-static. Design forming process for outdoor use 20 years without self cracking.

The body material made of Anti-UV PC material, Excellent transmittance, low carbon environmental protection, energy saving and efficient.

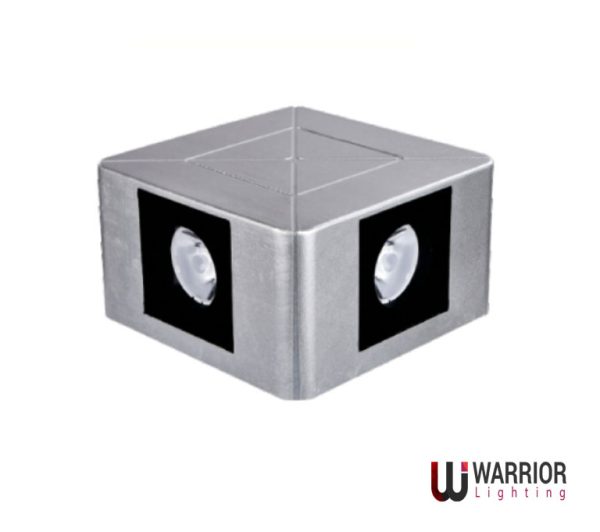

Model : HD-D14135
LED Brand: CREE, Osram
Color: Single Color , RGB , RGBW
Maximum power: 6W to 9W
Size : D90*62mm
Light Source: 3535 LED
Material: UV Resistant PC
Surface Color: White / Black
Working temperature: -40°C to 55°C
Protection level: IP67
Working voltage: DC 5V, DC 12V , DC24V
Light beam angle: 120 to 180 [deg.]
Control Method: DMX512 / On Off
Application environment: Outdoor
