Wide Range of Color Output
Specifications:
- No Shadow Gap in joint.
- Various customization options including fixture length, color, and pixel configuration
- Direct or diffused views
- Slim profile
- Flexible mounting capability
- Outdoor-rated and UV-resistant
- Simple cabling
- Auto-addressable pixels
- Simple mounting support is applicable to the more extensive installation environment.
- Employed with Germany processing technique and formula, ensuring excellent light transmittance while hiding LED light spots.
- Featuring well-distributed light rays, transparent as a whole, without dark space.
- Source Type : LEDLamp Load : 13W/M
Pixel / Meter : 8 Pixel | 16 Pixel
Luminous intensity : 12 to 16 cd / Pixel
Refresh ratio of the video: 25HZ to 30 HZ
Grayscale : 65,536 levels
LED Chip: Cree | Osram
Input Voltage: DC24V / DC48
Beam Angle: 180°
Color: RGB / RGBW/ Mono Color
Color rendering i(Ra): >82
Control Type: DMX512 / RDM / SPI
- Housing: Aluminum + 10mm Solic PCIP Rating: IP66

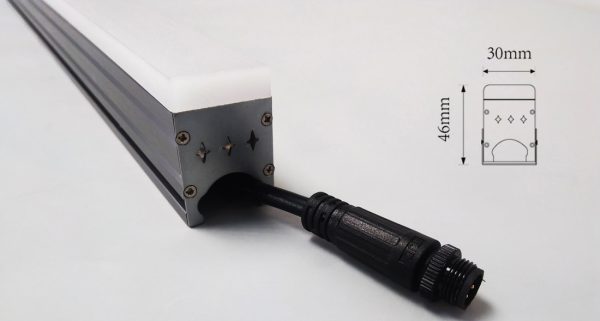

Size: L1000mm*W30*H46mm
Ambient temperature : -25℃~ +60℃
Lamp Life: 50,000 Hrs
PCB: Excellent heat conductivity aluminum coefficient of heat conductivity ≥ 2.0w/mk
Optimal distance of viewing: if 8 pixel per meters suggestion more than 40mters
CB Test: IEC 60598-2-1:2022 | IEC 60598-1:2014 | IEC 60598-1:2014/AMD1:2017
Warranty: 5 Years
