Specifications:
No Shadow Gap in joint.
Various customization options including fixture length, color, and pixel configuration
Direct or diffused views
Slim profile
Flexible mounting capability
Outdoor-rated and UV-resistant
Simple cabling
Auto-addressable pixels
Simple mounting support is applicable to the more extensive installation environment.
Employed with Germany processing technique and formula, ensuring excellent light transmittance while hiding LED light spots.
Featuring well-distributed light rays, transparent as a whole, without dark space.
Source Type : LED

Lamp Load : 13W/M

Pixel / Meter : 8 Pixel | 16 Pixel | 40 Pixel

Luminous intensity : 12 to 16 cd / Pixel

Refresh ratio of the video: 25HZ to 30 HZ

Grayscale : 65,536 levels

LED Chip: Cree | Osram

Input Voltage: DC24V / DC48

Beam Angle: 180°

Color: RGB / RGBW/ Mono Color

Color rendering i(Ra): >82

Control Type: DMX512 / RDM / SPI
Housing: Aluminum + PMMA Diffuser

IP Rating: IP66

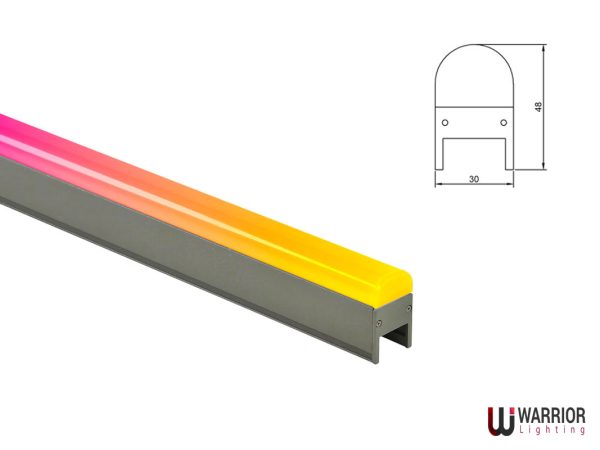

Size: W32*H55*L1000mm

Ambient temperature : -25℃~ +60℃

Lamp Life: 50,000 Hrs

PCB: Excellent heat conductivity aluminum coefficient of heat conductivity ≥ 2.0w/mk

Optimal distance of viewing: if 8 pixel per meters suggestion more than 40mters

CB Test: IEC 60598-2-1:2022 | IEC 60598-1:2014 | IEC 60598-1:2014/AMD1:2017

Warranty: 5 Years
