​Various customization options including fixture length, color, and pixel configuration

Direct  views

Slim profile

Flexible mounting capability

Outdoor-rated and UV-resistant

Simple cabling

Auto-addressable pixels​​

Simple mounting support is applicable to the more extensive installation environment.

Source Type : LED

Lamp Load : 13W/M

Pixel / Meter : 8 Pixel |  16 Pixel  |  48 Pixel

Luminous intensity : 12 to 16 cd / Pixel

Refresh ratio of the video: 25HZ to 30 HZ

Grayscale : 65,536 levels

LED Chip: Cree | Osram

Input Voltage: DC24V / DC48

Beam Angle: 120°

Color: RGB / RGBW/ Mono Color

Color rendering i(Ra): >82

Control Type: DMX512 / RDM / SPI

Housing: Aluminum

IP Rating: IP66

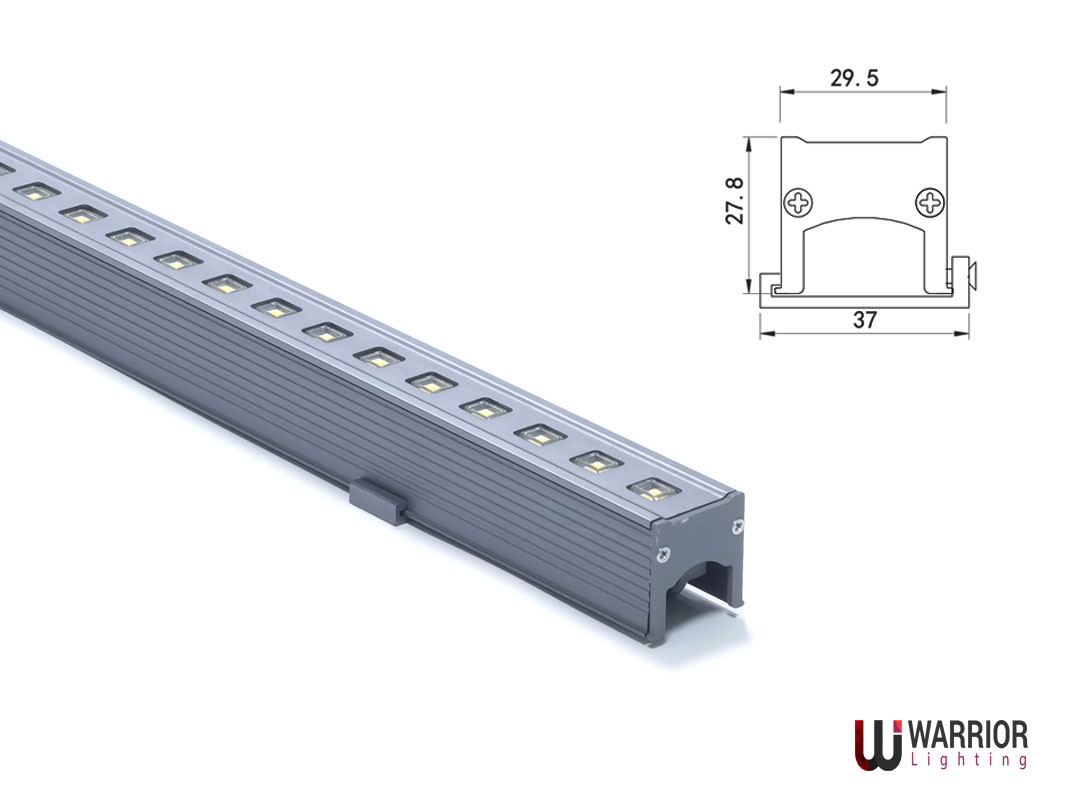

Size: L1000mm*W32*H32mm

Ambient temperature :  -25℃~ +60℃

Lamp Life: 50,000 Hrs

PCB: Excellent heat conductivity aluminum  coefficient of heat conductivity ≥ 2.0w/mk

Optimal distance of viewing:  if 10pixel per meters suggestion more than 40mters

CB Test: IEC 60598-2-1:2022 | IEC 60598-1:2014 | IEC 60598-1:2014/AMD1:2017

Warranty: 5 Years
