HD-N0612 | Warrior Lighting

Wide Range of Color Output

Working Voltage	24V DC / 12V DC

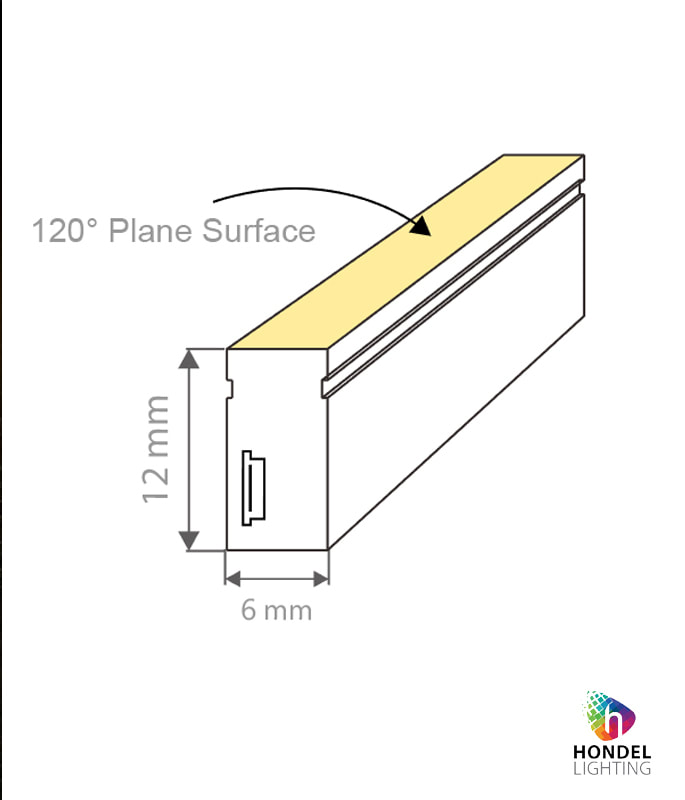

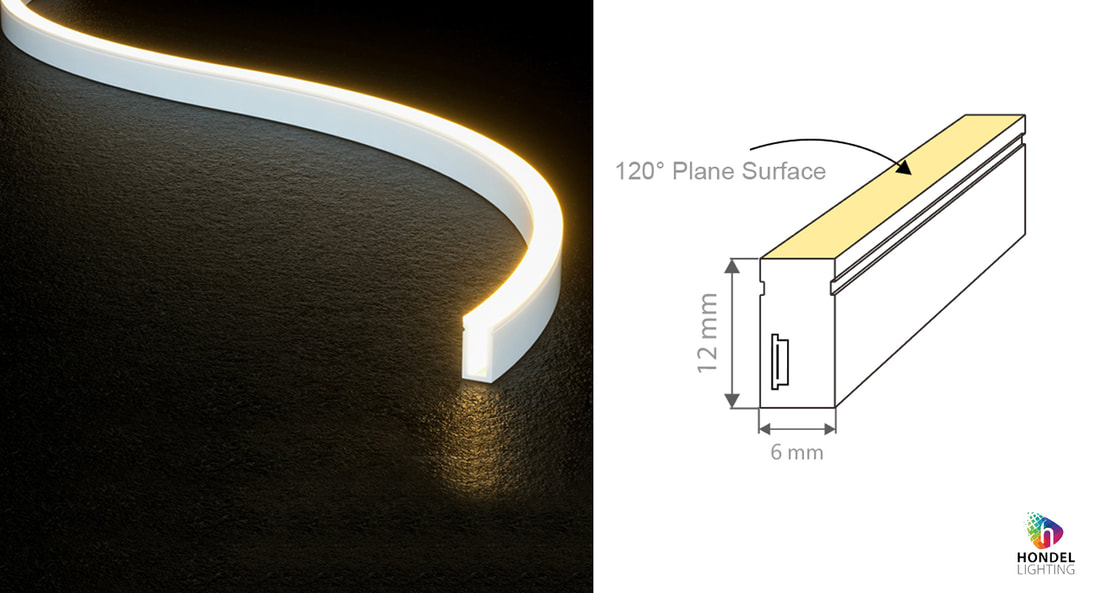

Light Profile	Plane Surface
Size(W*H)	5X12mm
Lighting Color	Red \| Blue \| Green \| Amber \| Orange \| Purple
Lighting CCT	White \| Warm White \| Natural White \| Cool White
Control Color	Single Color / Dimming / CCT
LCD Type	SMD 2835
Rated Power/m	11W(2835 Single Color) 16W(2835 Adjustable CCT) 11W(3014 Adjustable CCT)
FPC Light Direction	Vertical
Continuous Length (Single End Feeding)	5m
Continuous Length (Double Ends Feeding)	10m
IP Rating	IP68
working temperature	-20℃~60℃
LED Qty/m	126LEDs (2835 Single Color) 240LEDs (2835 Adjustable CCT) 240LEDs (3014 Adjustable CCT)
Min.Cutting Unit	7LEDs (2835 Single Color) 12LEDs (2835 Adjustable CCT) 12LEDs (3014 Adjustable CCT)
Min.Cutting Length	55mm Min.Cutting Length (24VDC)
